LOG#182. Duality and gravity: extra thoughts.

In the previous post, I reviewed very naively and shallowly some of the relationships between duality and gravity, and that from electromagnetic duality. There are many other interesting points. This post is aimed to highlight some issues and works that have not (to my knowledge) been exposed in the way I like.

Magnetic monopoles are that crazy but wonderful idea that make theoretical physicists to burn into their heads. As it is well known, from Dirac, the existence of a single magnetic monopole could provide an explanation of WHY electric charge is quantized (irrespectively the unobservable fractional quark charge and other fractional charges observed in condensed matter, I might say). There is a deep link between magnetic flux and mass, and therefore, one is tempted (not without troubles!) to identify mass as certain kind of “trapped flux”. It was an heritage that the second superstring revolution has left unended, to my opinion, because it points out to certain ambiguity of the choice of the fundamental degrees of freedom of any dual-theory that has remained until current times. Before to enter the game of the Dirac quantization condition and its brane analogue, let me expose some other basic stuff, a very well know fact that is sometimes left unexplained (or in the air).

Imagine you pick 2 electrons of mass M_e and charge e. What is the mass of that electron in order to have the electric ofrce it yields equal to the gravitational force it causes? To answer this, you only need school physics. What it is more interesting, is that due to the specific power laws of the Coulomb and Newton laws, the result is independent of the distance you put the electrons. You get:


where G_N is the newton gravitational constant and K_C is the Coulomb constant. This results even holds in any space-time dimension provided the electric force and the gravitational force “see” the same number of the dimensions, i.e., the follow the SAME power law. From this, the electron mass reads


Compare this to the Planck mass

    \[M_P=\sqrt{\dfrac{\hbar c}{G_N}}\]

to get

    \[\dfrac{M_e}{M_P}=\sqrt{\dfrac{K_C e^2}{\hbar c}}=\sqrt{\alpha}\]

The mistic and mythic electromagnetic fine structure constant. A pure number that has attracted everyone. Do you dislike \alpha. Take instead Planck units, Stoney units where the Stoney mass reads

    \[M_S=\sqrt{\dfrac{G_N e^2}{K_C}}\]

and no Planck constant. The same argument leads to M_e/M_S=1 or M_e=M_S. That is indeed a deeper result, since you can change from Stoney units to Planck units inserting factors of \sqrt{\alpha} in the appropiate way. Of course, asking why the limit mass is the Planck mass or the Stoney mass to balance electrostatic and gravitational forces is other way to ask why the gravitational constant G_N and the K_C number have the values they have. No one knows why, but it is an interesting question to imagine what would happen if their values were different of if they were variable in time (some old speculations are about this) or energy (this is more or less accepted, at least in Quantum Field Theories, QFT). Note, however, that if they do vary in energy, they had to vary in cosmic time (by duality, T\sim \hbar /E, in quantum theories due to the Heisenberg uncertainty principle, but it is the way in which they should be the real problem). Therefore, the Coulomb constant and the gravitational constant combine with the electric charge to produce a mass scale, independently of details and the number space-time dimensions! However, the number of space-time dimensions can vary the proportion in which this is attained. The ratio between the electric mass and the electron mass IS (and this is IMPORTANT), in Stoney units,

(1)   \begin{equation*} \boxed{\dfrac{e}{M_e}=\sqrt{\dfrac{G_N}{K_C}}} \end{equation*}


(2)   \begin{equation*} \boxed{\dfrac{e}{M_e}=\sqrt{\dfrac{\alpha G_N}{K_C}}} \end{equation*}

Conclusion: the trio (\alpha, G_N, K_C) allow us to define the charge to mass electron ratio (and other electric charge to mass by construction) in certain invariant way. Let me remember that Barrow et al. have probed (and I wrote about this in this blog) that for N space (space-time) dimensions, the next adimensional quantity can be made

(3)   \begin{equation*} A=e^{N-1}\hbar^{2-N}c^{N-4}G^{(3-N)/2} \end{equation*}

Note the absence of K_C (due to the system of units they use). N=3 give you \alpha. If you included K_C in standard SI units, you would get instead:

(4)   \begin{equation*} B=K_C^{N-2}e^{N-1}\hbar^{2-N}c^{N-4}G^{(3-N)/2} \end{equation*}

Note what happens in N=2 (no \hbar!And no K_C!), N=1 (no electric charge) and N=0. The last case \hbar^2 G^{3/2}/(ec^4), or \hbar^2 G^{3/2}/(ec^4K_C^2), is important for multitemporal theories. Also, D=5 (assuming space-time dimensions in a positive or null number), is the first number for which you need the quartet (e, \hbar, c, G_N), and likely K_C in hidden format, to get the adimensional quantity.

Duality is a relationship, as far as you imply the original T-duality or S-duality, involving interchangeable roles of magnetic and electric roles. Surprisingly, it also implies a dual role of G_N and K_C. It is not strange. The speed of light is related to K_C via K_C=1/4\pi\varepsilon_0 and c^2=1/\sqrt{\varepsilon_0\mu_0}=. Now, if you want to have a single valued electron wave-function, certain phase quantity (a flux) must be quantized. In particular, using gaussian units, SI units (weber convention) or SI units (ampere times meter convention), you get respectively

    \[Q_eQ_m=\dfrac{\hbar c}{2}N\]

    \[Q_eQ_m=2\pi \hbar N\]

    \[Q_eQ_m=\dfrac{\hbar c^2}{2K_C} N\]

where N is an integer number. Taking the first one, with N=2, Q_e=e and Q_m=g, it allows you to define the scale of magnetic monopole mass as

    \[\boxed{M_m^{-1}=M(g)^{-1}=\dfrac{\hbar c}{e}\sqrt{\dfrac{G_N}{K_C}}=g\sqrt{\dfrac{G_N}{K_C}}}\]

and the magnetic charge to mass ratio reads (compare with the electric case!):


Surprised? A duality in K_C, G_N! If you write units with K_C=1 (a common choice), you get the disturbing result that the square root of the gravitational constant is related to the product of the magnetic monopole charge and the monopole mass! I don’t remember if this has been pointing out before, but it is a striking result! Have you ever heard that Gravity=Yang-Mills^2? This could be tracked from this result. Is gravity caused my hidden and virtual “magnetic monopoles”? I know, it is a crazy idea. In summary

    \[\boxed{\dfrac{g}{M(g)}=\sqrt{G_NK_C}}\leftrightarrow \boxed{\dfrac{e}{M_e}=\sqrt{\dfrac{\alpha G_N}{K_C}}}\]

What else? Well, additional mysteries. Christian Beck has introduced the so-called Planck-Einstein scale with the aid of the cosmological constant. In particular, the Planck-Einstein length reads:

    \[L_{PE}=\sqrt{L_PL_E}=\sqrt{\dfrac{G\hbar}{c^3\Lambda}}\sim 0.037 mm\]

By the other way, there is another mass scale in stellar physics worth mentioning. The Chandrasekhar mass. Being M_P the Planck mass and m_p the proton mass

    \[M_C=\left(\dfrac{\hbar c}{G_Nm_p^2}\right)^{3/2}M_P=\dfrac{M_P^3}{m_p^2}\approx 1.5M_\odot\]

Scaling these numbers, a la Dirac, you can get that the number of baryons in the Universe is about (M_P/m_p)^4, the photon to baryon ratio is about \sqrt{M_P/m_p}\sim 10^{10}, and the Hubble time to Planck time ratio is about M_U/M_P\sim 10^{60}. Note that the BH entropy also scales as the ratio (M_{BH}/M_P)^2.

In searches for quantum gravity, sometimes is highlighted the resemblance of G_N with the Fermi constant G_F and the weak interaction before the rise of the electroweak theory that mades Fermi interaction an effective field from massive gauge particles. Using the Fermi constant, you can indeed define a length and mass scale. The Fermi length is

    \[L_W=\hbar c \sqrt{G_F}=\lambda_W\]

and the Fermi mass is, using L_W as a Compton wavelength

    \[M_W=\dfrac{\hbar}{L_W c}\]

This number is about 290 GeV and it is closely related to the Higgs vacuum expectation value, about 246GeV, since the latter is v_H=1/\sqrt{\sqrt{2}G_F}. L_W is a measure of the decay length of beta decays. Fermi constant allows us to introduce in a natural way a magnetic moment for neutrinos (yet unveiled!) as follows

    \[\mu_\nu\approx \dfrac{ eG_F m_\nu}{\hbar^2}\]

Even much more interesting is that the following equation gives an approximate (close to expectations from neutrino oscillations measurements) value for neutrino mass

    \[M=\dfrac{\hbar^3\sqrt{G_N}}{eG_F c}\sim m_\nu\]

Or even you can guess something like

    \[m_\nu=\dfrac{c\sqrt{\Lambda}}{\hbar}\dfrac{G_F}{G_N}\dfrac{\Omega_{DM}}{\Omega_{DE}}\approx 0.7 eV\]

and where the omegas are the energy densities of dark matter and dark energy, and \Lambda\sim 10^{-56}cm^{-2}.

Beck, Wesson and others using de Sitter relativity have pointed out that the cosmological constant introduces other mass scale into physics:


Put it into numbers to get something like 10^{-66}g. You can even wonder if the number of neutrinos, and the neutrino density, in the universe could be respectively

    \[N_\nu=\dfrac{\hbar c}{G_F\Lambda}\approx 10^{88}\]

    \[n_\nu=\dfrac{\hbar c \sqrt{\Lambda}}{2\pi^2 G_F}\]

In fact, using purely formal arguments from information theory, Beck arrive to a striking proposal to get the electron mass from first principles. Writing \Lambda_P=1/L_P^2, Beck writes

    \[\boxed{m_e=\dfrac{\alpha \hbar}{c}\Lambda^{1/3}_P\Lambda^{1/6}}\]

or, inverting the relationship, the scale of \Lambda is

    \[\boxed{\Lambda=\dfrac{G_N^2}{\hbar^4}\left(\dfrac{m_e}{\alpha_{em}}\right)^6=\left(\dfrac{G_Nm_e^3}{\hbar^2 \alpha^3}\right)^2}\]

It is similar, but not equal, to some previous results by Nottale using scale relativity since

    \[\alpha \dfrac{M_P}{m_e}=\Lambda^{-1/6}L_P^{-1/3}\]

is not exactly the Nottale proposal, but certainly something similar to it. Beck proposes that the vacuum energy density is related to electrons

    \[\rho_{Beck}=\dfrac{\Lambda c^4}{8\pi G_N}=\dfrac{G_N}{8\pi}\left(\dfrac{c}{\hbar}\right)^4\left(\dfrac{m_e}{\alpha}\right)^6\]

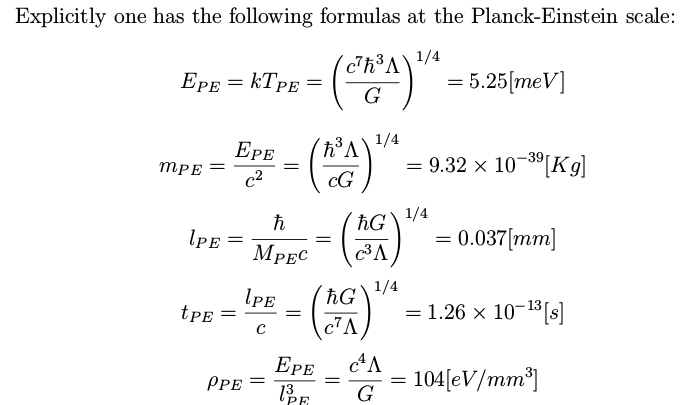

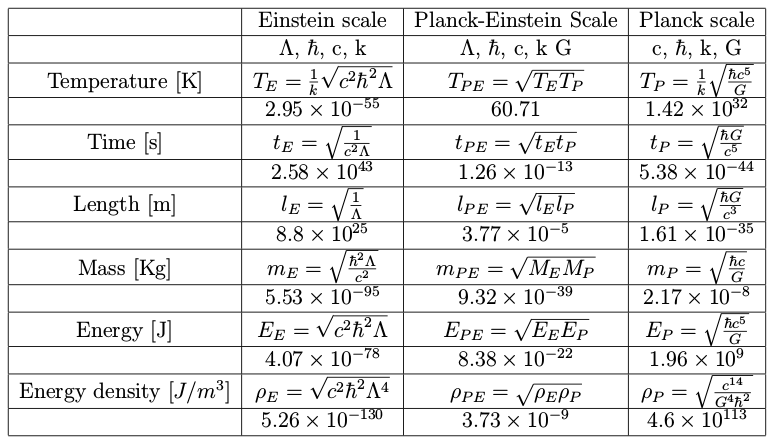

Beck thoughts through the Planck-Einstein units is much more explicit

Other place where duality arises naturally is in Heisenberg Uncertainty Principle, or Generalized Uncertainty Principle, popular effective general results in some proposals of quantum gravity, but also popular in extensions of relativity like Born reciprocal relativity or dS relativity. Born conjectured that you should have to promote the duality of phase space to space-time. It can be done to a price. Several consequences arise, like maximal force/acceleration (to be discussed elsewhere) but, from the GUP perspective, the X\leftrightarrow P symmetry implieds a GUP of the following type

(5)   \begin{equation*} \boxed{\Delta X\Delta P\geq \dfrac{\hbar}{2}\left(1+\alpha+\beta (\Delta P)^2+\gamma (\Delta X)^2\right)} \end{equation*}

The question IS, what are \alpha, \beta,\gamma? For \beta the natural choice (known from non-commutative geometry geometry, string theory or simply mixing general relativity with quantum mechanics is \beta=L_P^2/\hbar. For \gamma, Bambi or Arraut provide the natural Hubble length (or inverse cosmological constant length) quantity \gamma=1/L^2_\Lambda. Since, L_p<<1 and L_\Lambda>>1 (about 10^{-35}m and 10^{26}m respectively) is normal the correction is unnoticed. However, as far as I know, the \alpha correction is less known. It is a pure number, it could be also very small (or zero) and related (or not) to \alpha, \beta. Thus, we know the more general GUP in phase spacetime reads

(6)   \begin{equation*} \boxed{\Delta X\Delta P\geq \dfrac{\hbar}{2}\left(1+\alpha'+\dfrac{L_p^2}{\hbar^2}(\Delta P)^2+\left(\dfrac{\Delta X}{L_\Lambda}\right)^2\right)} \end{equation*}

Going to space-time only, non-commutative geometry argues that space-time coordinates theirselves are non-commuting. The natural regulator could be the Planck length

    \[\Delta X_i \Delta X_j\geq L_p^2 \delta_{ij}\]

Likely, it could exist a maximal length regular too, as a consequence of GUP! Inspired by the previous result, one searches for it in the form

    \[\Delta X^2\geq L_p^2+\left(\dfrac{\Delta X}{L_\Lambda}\right)^n\]

or perhaps

    \[L_p^2  \delta_{ij} \leq\Delta X_i \Delta X_j\leq  L_\Lambda^2\delta_{ij}\]

In order to get a maximal length NC-geometry HUP+GUP above you need at least n=3. But, you can also get it with n=2 iff (as it happens) L_\Lambda>>1. One is tempted to ask why is NC necessary, as far as we know space-time is very smooth on large scales. We know that quantum fluctuations of large tiny (dense) stuff should introduce these modifications in some way. The precise nature of these modifications (or even non-associative modifications) will be also a phenomenological issue to discuss in quantum gravity phenomenology. \left[x,x\right]=iL_p^2 and \left[x,y\right]=iL_p^2 formulae are known since the early times of quantum Mechanics, with Snyder, Born, and other less known characters. That L_S^2\Lambda\sim \exp (-1/\alpha), where L_S is the string length or scale, it is also comprehensible from a non-perturbative way through the Schwinger effect.

Off-topic: if you are afraid of tiny numbers, you should remember that quantities like 1 shed (10^{-24}barns), 1 barn=10^{-24}cm^2 are today common in nuclear or particle physics.

Some cool exercises:

Exercise 1. In order to get N=10^{78}, 10^{80} baryons in the Universe, what is the value of M you should plug into (\alpha_S is the strong coupling constant):

    \[\dfrac{\hbar^3}{e}\dfrac{\sqrt{G_N}}{G_F c}\dfrac{ \sqrt{N}}{\alpha_S}=M\]

Exercise 2. Could you fit the known hadronic and leptonic spectra from the following two-parameter formula for suitable values of k, n (integer numbers, fractional numbers):

    \[\boxed{M(n,k)=\dfrac{\alpha \hbar \Lambda_P^{1/3}\Lambda^{1/6}}{c}\left(\dfrac{\sqrt{G_N} M_P}{2 e}\right)^nn\cdot k}\]

or using the Beck formula

    \[\boxed{M(n,k)=n\cdot k \left[\dfrac{M_P c}{2e\sqrt{T_G}}\right]^nm_e}\]

and where \Lambda\approx 10^{-56}cm^2, \Lambda_P=1/L_P, L_P is the Planck length, c, \hbar, G_N, \alpha are the speed of light, reduced Planck constant, Newton gravitational constant and the electromagnetic fine structure constant. m_e is the electron mass and T_G=c^4/G_N is related to the maximal tension principle via F_M\leq c^4/4G_N. Note the resemblance of this equation to the string mth octave pth note formula given by f(m,p)=f_0\cdot 2^m(\sqrt{12})^p.

For any space-time dimension D you can have a p+1 gauge field that naturally couples to a p-brane, via a p+2 field strength. Its dual is a D-p-2 form with D-p-3 gauge field. Dirac quantization reads Q_eQ_m=N\hbar c/2, with Q_e=\int_\Sigma ^\star F and Q_m=\int_{\Sigma_d}F over suitable manifolds \Sigma, \Sigma_d.

Bunster, Henneaux et alii, proposed long time ago a strange (but wonderful) extension of duality for higher spin bosonic fields, with spin s. It is written as follows:

    \[\boxed{\dfrac{1}{2\pi\hbar}Q_{\mu_1\cdots \mu_{s-1}}(v)P^{\mu_1\cdots \mu_{s-1}}(u)=\dfrac{MN}{2\pi\hbar}f_{\mu_1\cdots \mu_{s-1}}(v)f^{\mu_1\cdots \mu_{s-1}}(u)\in \mathbb{Z}}\]

For s=1, you get a phase transformation (module an integer number), and the Dirac quantization condition naturally follows. For s=2, you obtain

    \[\dfrac{4G}{\hbar}P_\mu Q^\mu\in \mathbb{Z}\]

where P_\mu=Mv_\mu is the 4-momentum (generalization to arbitrary D is obvious), and Q^\mu=Nu^\mu, N being the magnetic mass, and where v^\mu is the magnetic 4-momentum. Thus, this higher spin quantization is not a quantization condition for electric-like or magnetic-like masses, but a quantization on 4-momentum. In the rest frame, this s=2 quantization reads

    \[\dfrac{4GMN}{\hbar}\in \mathbb{Z}\]

There are also the option to get gravitational dyons. Dyons are particles with both, electric and magnetic charges is given by (Zwanziger–Schwinger quantisation)

    \[e_1g_2-e_2g_1\in \mathbb{Z}\]

For the gravitational case, s=2, you get the analogue formula:

    \[\dfrac{4G_N}{\hbar}\left(P_\mu \overline{Q}^\mu-\overline{P}_\mu Q^\mu\right)\equiv \dfrac{4G_N\varepsilon_{ab}Q_\mu^a\overline{Q}^{b\mu}}{\hbar}\in \mathbb{Z}\]

Remark: the higher symmetric (spin) tensors Q_{\mu_1\cdots\mu_{s-1}} and P^{\mu_1\cdots\mu_{s-1}} are the magnetic-like and electric-like conserved charges associated to the asymptotic symmetries of any spin s tensor field. For s=1, as I mentioned, asymptotic symmetries ARE internal gauge symmetries, indeed, constant phase transformations, the P would be the electric charge and the Q the magnetic charge. For s=2, we have a space-time index, so conserved masses have dimensions of mass, and the P, Q tensors are associated to space-time traslations. In fact, in principle, they are associated only to linearized spacetime diffeomorphisms. The back-reactions of these charges in the case s>1 imply some technical difficulties, as we can not neglect non-linear (self)-interactions. Interestingly, Einstein theory does support the existence of gravitational dyons! I mean, general relativity can sustain the existence of both, electric and magnetic masses!

See you in another wonderful post!
