LOG#246. GR attacks, GR effects!

Newtonian gravity is not coherent with special relativity. Einstein was well aware about it and he had to invent General Relativity (GR). Armed with the equivalence principle, a mystery since ancient times of Galileo, the equivalence between inertial and gravitational mass guided him towards a better theory of gravity. He could envision properties of space-time like geometric features. He deduced that gravity was caused by space-time curvature, and idea that was already anticipated in the XIX century by B. Riemann in this habilitation thesis and by W. K. Clifford with his geometric algebra and calculus. Finally, and rivaling D. Hilbert, he arrived to the field equations (already seen in this blog):

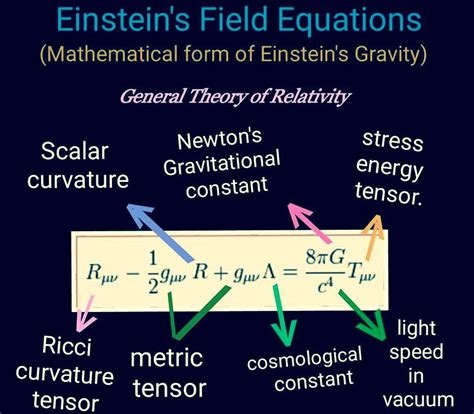

(1) $\begin{equation*} \tcboxmath{G_{\mu\nu}+\Lambda g_{\mu\nu}=\dfrac{8\pi G_N}{c^4}T_{\mu\nu}} \end{equation*}$

where $G_{\mu\nu}=R_{\mu\nu}+\dfrac{1}{2}g_{\mu\nu}R$ is the Einstein tensor, $G_N$ is the universal constant of gravity, and $\Lambda$ is the cosmological constant. $g_{\mu\nu}$ is the metric tensor (acting as gravitational potential in GR!), and the Ricci tensor, the Einstein tensor and the curvature scalar depend upon the metric and its derivatives up to second order in the derivatives. $T_{\mu\nu}$ is the momentum-stress-energy tensor. Space-time (curvature!) says matter and energy how to move, matter-energy tells space-time how to curve!
GR has a large number of tested phenomena! A list (non-exhaustive):

Tidal forces: $F_M=\dfrac{2GMm\Delta r}{r^3}$ . Tidal forces are consequence of the space-time curvature, as source of gravity.

Gravitational time dilation. It also affects GPS systems (so GR is important for technology):

(2) $\begin{equation*} \Delta t'=\dfrac{\Delta t}{\sqrt{1-\dfrac{2G_NM}{c^2r}}} \end{equation*}$

and where $R_S=2G_NM/c^2$ is the Schwarzschild radius. A simpler way to see the metric effect (gravitational potential) is using the expression:

(3) $\begin{equation*} \Delta t=\dfrac{gh}{c^2}t \end{equation*}$

$\Delta t$ is the time of the highest clock, at height $h$ , with respect to the deep observer measuring $t$ . The proof of this result can be done using a simple argument. A clock is some type of oscillator with frequency $\nu$ . In two different points, that oscillator it will have energy

$h\nu_1\left(1+\dfrac{U_1}{c^2}\right)=h\nu_2\left(1+\dfrac{U_2}{c^2}\right)$

As frequency and period are inversely proportional, it gives

(4) $\begin{equation*} \dfrac{\nu_1}{\nu_2}=\dfrac{1+\dfrac{U_2}{c^2}}{1+\dfrac{U_1}{c^2}}=\dfrac{\Delta t_2}{\Delta t_1} \end{equation*}$

If $\Delta t=\Delta t_2-\Delta t_1=\Delta t$ , and $\Delta t_1=t$ , we recover the first formula $\Delta t=ght/c^2$ if we suppose that the potential is $0$ at $h_1$ and $gh$ en $h_2$ . In the case the height is not negligible with respect to the radius, the GR correction can be generalized to

(5) $\begin{equation*} \delta_{GPS/GR}=\dfrac{\Delta t}{t}=\dfrac{U(r_s)-U(r_\oplus)}{c^2} \end{equation*}$

This formula can be comparede to the SR correction due to motion:

(6) $\begin{equation*} \gamma=\dfrac{1}{\sqrt{1-\frac{v^2}{c^2}}}=1+\delta_{SR} \end{equation*}$

Exercise: make the figures for $r_s= 26 561 km$ , y $r_\oplus=6370km$ . The net effect is that the orbital clock is faster than the deeper one by a quantity $1+\delta_R$ , where $\delta_T=\delta_{GR}-\delta_{SR}$ . We can see what clock is the dom. It is the GR clock. Estimate how many times is more powerful the GR than the SR effect. A more careful deduction, having into account the ellipticity and the orbital parameters, can be derived too:

(7) $\begin{equation*} \Delta t_r(GPS)=-2\dfrac{\sqrt{GM_\odot a}}{c^2}e\sin E=-2\dfrac{\sqrt{GM_\odot a}}{c^2}(E-M) \end{equation*}$

and where $G, M_\odot, a, e, c, E, M$ are the universal gravitation constant, the Earth mass, the major semiaxis, the eccentricity, the speed of light, and eccentric anomaly and the average anomaly.

Mercury precession and general orbital objects in GR. Before Einstein, even LeVerrier speculated about Vulcan, a further inner planet of the Solar System. Vulcan does not exist: it is only a non-trivial GR effect:

(8) $\begin{equation*} \Delta \phi=\dfrac{6\pi G_NM}{c^2R(1-e^2)}=\dfrac{24\pi^3 R^2}{c^2T^2(1-e^2)} \end{equation*}$

Gravitational lensing (checked with success in the A. Eddington expedition in 1919):

(9) $\begin{equation*} \Theta_{L}=\dfrac{4G_NM}{c^2r}=\dfrac{2R_S}{r}=\dfrac{D_S}{r} \end{equation*}$

Prediction of gravitational waves and gravitational radiation (newtonian theory is eternal and dos not shrink orbits). Gravitational waves move at speed of light (or is light the wave that moves at the maximal speed allowed by space-time?) $v_g=c$ . Every body loses energy with gravitational radiation. It was anticipated by the binary pulsar observations in the 20th century. LIGO detected the first GW in 2016. Without sources, the wave equation for gravitational waves is

(10) $\begin{equation*} \square \overline{h}_{\mu\nu}=0 \end{equation*}$

Gravitomagnetic effect (tested by Gravity Probe B), or Lense-Thirring. The first formula reads:

(11) $\begin{equation*} \dot{\Omega}=\dfrac{R_S ac}{r^3+a^2r+R_Sa^2}\left(\dfrac{360}{2\pi}\right),\;\;\; R_S=\dfrac{2G_NM}{c^2},\;\;\; a=\dfrac{2R_\star^2}{5c}\left(\dfrac{2\pi}{T}\right) \end{equation*}$

and the second formula is

(12) $\begin{equation*} \dot{\Omega}=\dfrac{2GJ}{c^2a^3(1-e^2)^{3/2}}\left(\dfrac{360}{2\pi}\right)=\dfrac{2G^2M^2\chi}{c^3a^3(1-e^2)^{3/2}}\left(\dfrac{360}{2\pi}\right) \end{equation*}$

Existence of black holes, objects so dense that light is trapped. Anticipated idea as dark stars by other scientists, a more precise definition of black holes is like vacuum solutions to the EFE (Einstein Field Equations)
\item Vacuum energy density, VIA $\Lambda$ , AND it yields a density energy even for vacuum

(13) $\begin{equation*} \rho_\Lambda=-\dfrac{\Lambda c^4}{8\pi G_N} \end{equation*}$

Cosmic expansion, Big Bang theory, as large scale consequences of EFE. A simplification can be done using the cosmological principle: the Universe is homogeneous and isotropic at very large scales. It simplifies solutions to EFE and a special class of metrics, the so called Friedmann-Robertson-Walker metric, allow us to study the expanding universe and its history.

Other GR effects: de Sitter geodesic effect, strong and weak (or other) equivalence principles, Shapiro delay (fourth classical test of GR), no hair theorem, … Shapiro delay formula reads off

(14) $\begin{equation*} \Delta t_S=-\dfrac{2GM}{c^3}\ln \left(1-\mathbf{R}\cdot \mathbf{r}\right) \end{equation*}$

GR also gives the possibility of time machines, wormholes, and TARDIS-like space-times. Other solutions: regular black holes, cosmic strings, cosmic deffects, black p-branes,…Recently, it was realized that the reduction of GR to SR in weak fields is non-trivial due to asymptotic symmetries. The BMS group provides the full set of symmetries in GR, plus a new set of symmetries. Thus, supertraslations, superrotations and superboots have generalized the BMS group in the extended BMS group, a sort of conformal or superconformal symmetry. Gravitational memory effects have also been studied recently. GR is a simple gravitational theory, the simplest of a bigger set of theories.

Extensions of GR can be studied, both as alternative to GR or having GR as approximation: multimetric theories, higher derivative extensions (Finsler geometrey, Lanczos-Lovelock, torsion theories like Cartan’s, non-metric theories, tensor-scalar theories, teleparallelism,…) and many others.

At quantum level, gravitation is not completely understood. The best candidate for TOE and GR extension is string theory, a.k.a. as superstring theory or M-theory. Also supergravity theory remains as option. Other alternative theories are Loop Quantum Gravity, twistor theory and extended relativities. GR involves the existence of space-time singularities where usual physical laws do not apply. No one knows how to treat the issue of the beginning of time and space-time.

See you in other blog post!
